Frequently asked questions

What is Seatmap.pro?

Seatmap.pro is an enterprise platform for creating, managing, and rendering interactive venue seating charts. It provides a visual Editor for designing seat maps, a high-performance Booking Renderer SDK (@seatmap.pro/renderer on npm) for WebGL-based seat selection, and a Booking API v2 for real-time availability and sales integration. Seatmap.pro is a visualization layer only – it never stores your prices, sales data, or payment information. Your ticketing system remains the single source of truth.

What types of venues does Seatmap.pro support?

Seatmap.pro supports venues of all sizes and configurations: concert halls, stadiums, theaters, arenas, conference centers, sports venues, and any space with assigned or general-admission seating. The Editor handles numbered seats, general admission (GA) sections, tables, standing areas, and mixed layouts. You can import existing SVG floor plans and overlay seating on top of them.

How many seats can Seatmap.pro handle?

The Booking Renderer uses WebGL acceleration and renders 10,000+ seats at 60fps in modern browsers. The Editor can create schemas with tens of thousands of seats. For very large venues (30,000+ seats), the renderer automatically switches between detail levels (individual seats vs. section overviews) to maintain smooth performance.

What frameworks does the renderer support?

The Booking Renderer SDK is framework-agnostic. It works with React, Vue, Angular, Svelte, or vanilla JavaScript. Install it via npm install @seatmap.pro/renderer and mount it on any HTML container element. See the Renderer Getting Started guide for integration examples.

How do I integrate Seatmap.pro with my ticketing system?

Integration follows four steps: (1) Design a seat map in the Editor, (2) Create an event via the Booking API v2 and link it to the schema, (3) Assign prices to seats or sections, (4) Embed the Booking Renderer in your sales page using the TypeScript SDK. The renderer communicates with the Booking API for real-time seat availability, locking, and status updates. See the Integration guide for a detailed walkthrough, or read Why API Integration is Crucial for Ticketing Platforms for a broader perspective.

What is the Booking API v2?

The Booking API v2 is a REST API for managing events, pricing, and the seat booking lifecycle. It supports operations like creating events, assigning prices, locking seats (with configurable TTL), confirming sales, and unlocking. The API base URL for cloud deployments is https://booking.seatmap.pro/api/private/v2.0/. Full reference is available in the API v2 documentation.

Can I embed the Editor in my application?

Yes. The Editor can be embedded in your application via an iframe. You can control which tools and modes are visible, pass authentication tokens for SSO autologin, and communicate with the editor via the postMessage API. See the Iframe API and Iframe Communication guides.

What pricing plans are available?

Seatmap.pro offers three plans: Cloud (SaaS, from EUR 100/month, up to 170,000 seats/year), On-Premise (self-hosted, EUR 20,000/year or EUR 60,000 perpetual license, unlimited seats), and Custom (tailored integration for enterprise needs). There are no per-seat or per-booking fees. See the pricing section on the homepage.

Is there a free trial?

Contact us via the demo request form to arrange a personalized demonstration and discuss trial options. We offer guided onboarding to help you evaluate the platform with your own venue data.

Can I deploy Seatmap.pro on my own servers?

Yes. The On-Premise plan provides Docker images and Helm charts for self-hosted deployment on your own Kubernetes infrastructure. This gives you full control over data residency, network isolation, and infrastructure configuration. See the On-Premise deployment guide and Helm chart documentation. For a comparison of deployment models, see SaaS, On-Premise, and Managed On-Premise.

What are the system requirements for on-premise deployment?

On-premise deployment requires Kubernetes (1.24+), Helm 3, PostgreSQL 14+, and Redis 7+. The platform runs as a set of microservices: Editor Service (Java 21, Spring Boot), Booking Service (Java 21, Spring Boot), Converter Service (Node.js 22), and the frontend applications. Minimum recommended resources are 4 CPU cores and 8 GB RAM for a production workload.

How does Seatmap.pro handle data security?

Seatmap.pro is a visualization platform only. It does not process payments, store transaction data, or hold pricing information on its servers. Your ticketing system remains the single source of truth for all business-critical data. Communication between the renderer and the Booking API uses HTTPS with HSTS enforcement. On-premise deployments give you complete control over data residency and network policies.

Is Seatmap.pro GDPR compliant?

Seatmap.pro follows GDPR-aligned data practices. The platform collects minimal personal data (editor user accounts only). For cloud deployments, data is hosted in EU data centers. On-premise deployments keep all data within your own infrastructure. See our Privacy Policy for details.

Editor

I want to set colors for prices

You can change the price colors in both Booking Renderer and Admin Renderer.

Booking Renderer

To change the price color theme in Booking Renderer, go to settings->theme->priceColors.

Basic usage:

const settings: IBookingRendererSettings = {
  theme: {
    priceColors: [
      ['#FF0000', '#00FF00', '#0000FF', '#FFFF00', '#00FFFF', '#FF00FF'],
    ],
  },
};

Basically, you can configure a single array of price colors. If the number of price items for an event exceeds the number of colors in the array, the system will reuse the available colors.

To avoid duplicate colors for different prices, we recommend you to have the longest possible array of colors.

Advanced usage:

const settings: IBookingRendererSettings = {
  theme: {
    priceColors: [
      ['#FF0000', '#00FF00', '#0000FF', '#FFFF00', '#00FFFF', '#FF00FF'],
      ['#FF0000', '#00FF00', '#0000FF', '#FF00FF', '#00FFFF'],
      ['#FF0000', '#00FF00', '#0000FF'],
      ['#FF0000', '#0000FF'],
      ['#0000FF'],
    ],
  },
};

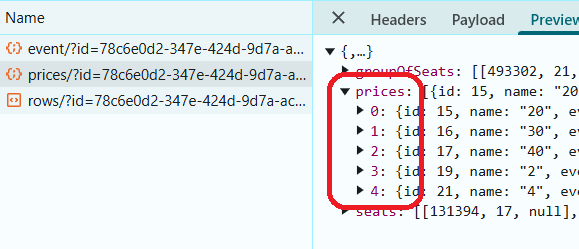

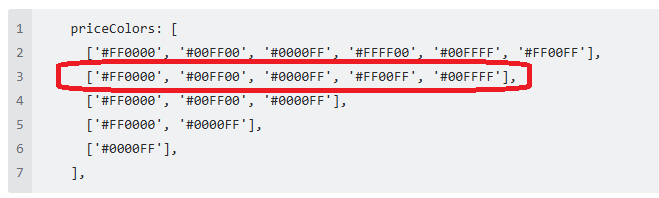

While rendering a schema, we will fetch the number of price items using the API and will pick the appropriate list of colors. For example, if the API returns 5 price items, we will pick the array of 5 colors from these settings:

In this scenario, if we do not find an array exactly matching the returned number of price items, we will use the first one as a fallback. If the first array is not long enough either, the system will reuse the available colors. That’s why we recommend you to keep the longest array first.

Admin Renderer

In Admin Renderer, you can set different color categories for different seats.

To set a color using the setSeatsCategory() method, pass the following:

• a list of seats (usually selected manually by the administrator)
• a category number
• a new color

renderer.setSeatsCategory(seats, 3, '#E50914');

This color will not be saved in the database and is for administrator use only.

Also, you can go to settings->theme->colorCategories and set the default colors for Admin Renderer as described above.

{
"prohibitDeleteSeats":"true/false"
}

  schema: 'mode.schema',
  underlay: 'mode.underlay',
  venueShape: 'mode.venueShape',
  pricingZones: 'mode.pricingZones',
  pricing: 'mode.pricing',
  section: 'mode.section',

  select: 'tool.select',
  seatRows: 'tool.seatRows',
  table: 'tool.table',

  shape: 'tool.shape',
  rect: 'tool.shape.rect',
  circle: 'tool.shape.circle',
  line: 'tool.shape.line',
  polygon: 'tool.shape.polygon',

  label: 'tool.label',
  selectSeats: 'tool.selectSeats',
  selectRows: 'tool.selectRows',
  addSeat: 'tool.addSeat',
  numberSeats: 'tool.numberSeats',
  selectSections: 'tool.selectSections',
  save: 'tool.save'
